Sub-flows

A flow that tests a real user journey — sign up, verify email, log in, create a project, invite a teammate, tear it all down — quickly grows past what fits comfortably on one canvas. And most of those journeys share steps: nearly everything you test needs a login first. Copy-pasting the login nodes into every flow means fixing them in five places when the auth endpoint changes.

Sub-flow nodes solve both problems: build the login sequence once as its own flow, then call it from every other flow that needs it.

The function-call model

A Sub-flow node runs another saved flow as a nested step, the same way a function call runs a function:

• Ports: one in-port, one out-port. If any node inside the called flow fails, the Sub-flow node fails and everything downstream of it is skipped — exactly like a request node failing.
• Isolation: the child flow does not see the parent's node outputs. Nothing leaks in by accident. Anything the child needs has to be passed explicitly.

Input mappings

In the Sub-flow node's inspector, add input mappings: a name, and a value expression resolved in the parent's scope (so it can reference {{login.outputs.token}} or anything else the parent already has). Each mapping becomes a plain variable inside the child flow, as if it had been set in the child's own environment.

If a mapping's value expression doesn't resolve, the Sub-flow node fails immediately — the child never runs with a hole in its inputs.

The inspector offers one-tap suggested inputs, populated from the child flow's own required-inputs list (the same manifest sharing uses), so you don't have to go open the child flow to see what it needs.

Reading the child's outputs

The child's terminal node results land on the Sub-flow node's own result (expand it in the run report to see each child node's status individually). Any extraction the child published comes back as:

{{subflowNode.outputs.childNodeName.extractionName}}

So if your reusable "Login" child flow has a request node named login with a token extraction, and you call it from a Sub-flow node named auth, downstream in the parent you'd reference {{auth.outputs.login.token}}.

Recursion protection

A flow can't call itself, directly or through a chain of other flows — Probe checks the whole call graph at save time and rejects a cyclic save. The flow picker in the Sub-flow node's inspector goes a step further: it hides any flow that would create a cycle (itself, and anything that (transitively) calls back to the flow you're editing), so you can't even select an invalid target. Diamond-shaped call graphs — two different Sub-flow nodes both calling the same shared child — are fine; only cycles are blocked.

Nesting is capped at 8 levels deep as an additional runaway guard.

Sub-flow nodes are legal inside a Loop body — a common combination is "for every item, run this reusable per-item sub-flow."

Example: a reusable login flow

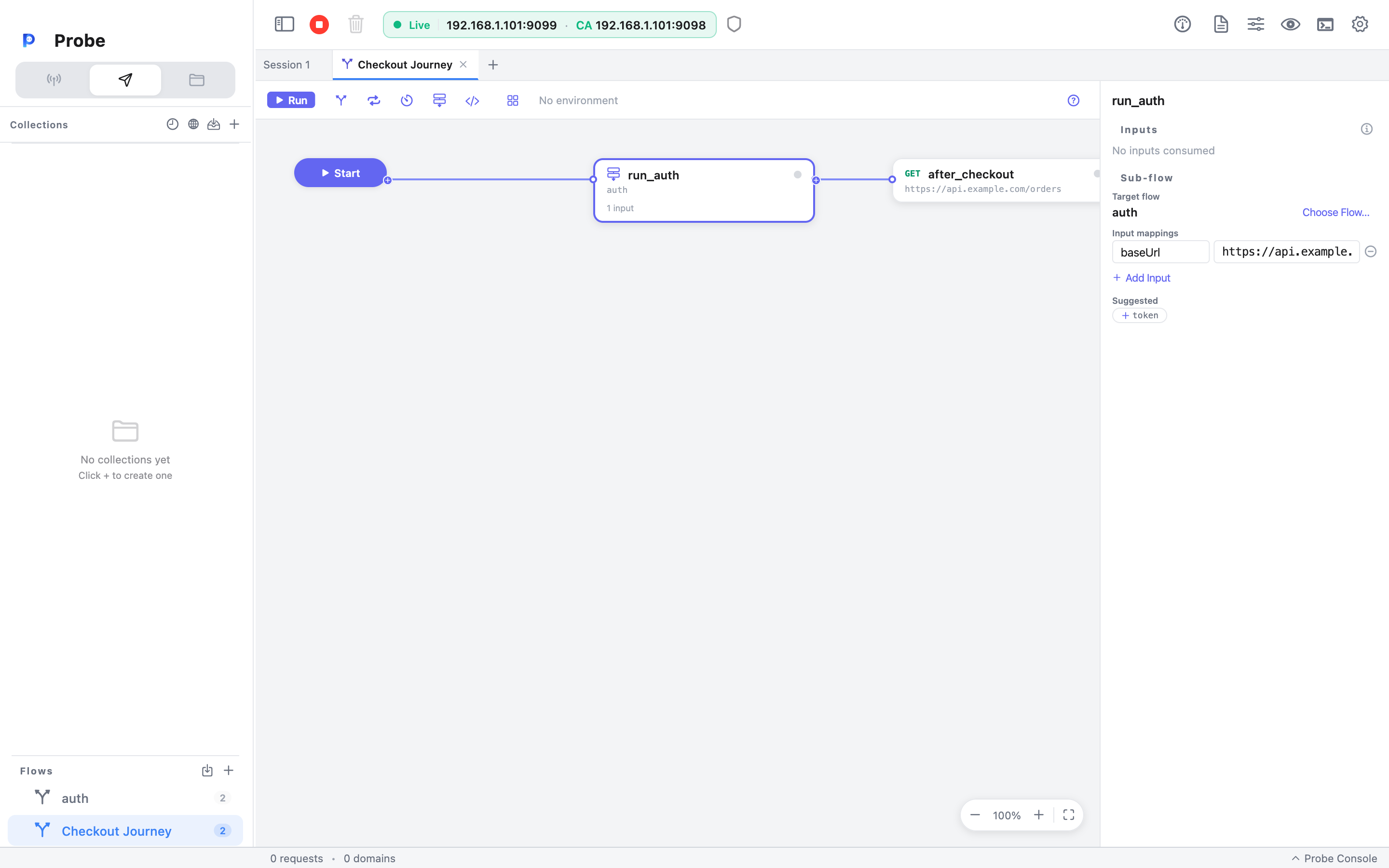

1. Build a small flow, "Auth: Login", with just a Start node and one request node named login that posts credentials and extracts token from the response body.
2. In any other flow, drag in a Sub-flow node, pick "Auth: Login" as the target, and (if your login endpoint needs credentials passed in rather than hard-coded) add an input mapping like username → {{globalTestUser}}.
3. Anywhere downstream, reference {{authNode.outputs.login.token}} exactly like you would from an inline login request node.

Now every flow that needs a token calls the same one place — fix the login sequence once, and every flow that depends on it picks up the fix.
